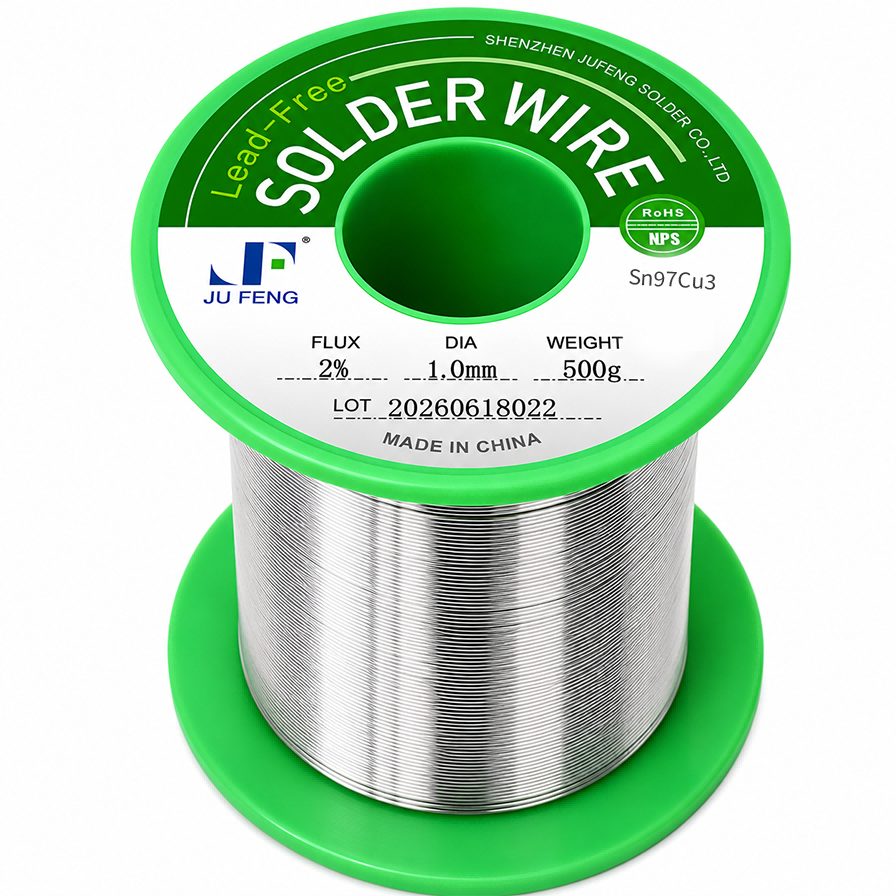

Sn97Cu3 Lead-Free Solder Wire
Sn97Cu3
Lead-Free Solder Wire
Sn97Cu3 lead-free solder wire is a tin-copper alloy designed for applications requiring higher process temperature and stronger solder joint performance. With a melting point of approximately 300°C and available diameter from 0.3mm, it is suitable for industrial electronics, electrical components, and applications where higher thermal resistance is needed.
A higher-temperature SnCu solder wire for industrial use.
Sn97Cu3 solder wire has a higher copper content than common Sn99.3Cu0.7 solder wire, giving it a higher melting point and stronger suitability for applications where elevated soldering temperatures are acceptable. It is often selected for durable solder connections, industrial electronics, and heat-resistant soldering requirements.
Higher Melting Point
Designed for applications requiring higher thermal resistance than standard SnCu solder wire.
Stronger SnCu Alloy
Higher copper content supports durable solder joint performance.
Industrial Suitability
Applicable to electronic assemblies exposed to more demanding conditions.
Custom Supply Options
Available in different wire diameters, flux types, and packaging formats.
Sn97Cu3 solder wire specifications.
Core product parameters for quick evaluation and RFQ communication.
| Item | Specification | Description |
|---|---|---|
| Product Name | Sn97Cu3 Lead-Free Solder Wire | Higher-temperature SnCu solder wire |
| Alloy Composition | Sn97 / Cu3 | Tin-copper lead-free alloy |
| Melting Point | 300°C | Higher melting point according to product catalog |
| Minimum Diameter | ≥0.3mm | Suitable for industrial soldering applications |
| Wire Type | Flux Cored / Solid Core Optional | Can be selected according to process needs |
| Flux Type | Rosin Core / No-Clean Optional | Custom flux formulation available |
| Surface | Bright and smooth | Supports stable feeding and soldering |
| Packaging | Tube / Spool / Carton | 10g per tube; 100g–2000g per roll; carton packaging available |
Designed for higher-temperature soldering requirements.
Sn97Cu3 solder wire is suitable for soldering applications where stronger heat resistance and durable solder joints are required.
Industrial Electronics
Used for components requiring stronger solder joints.
Electrical Components
Suitable for terminals, connectors, and electrical assemblies.
High-Temperature Soldering
Selected for applications where higher soldering temperatures are acceptable.
Maintenance & Repair
Used for repair work involving durable electronic connections.
Flexible packaging for sampling and production.
Packaging can be selected according to wire diameter, order quantity, and shipping requirements.
Tube Packaging
10g per tube, suitable for samples, maintenance, and small-quantity use.
Spool Packaging
100g / 200g / 250g / 500g / 1000g / 2000g per roll available.
Carton Packaging
10 rolls per box; carton size can be arranged according to export shipment needs.
