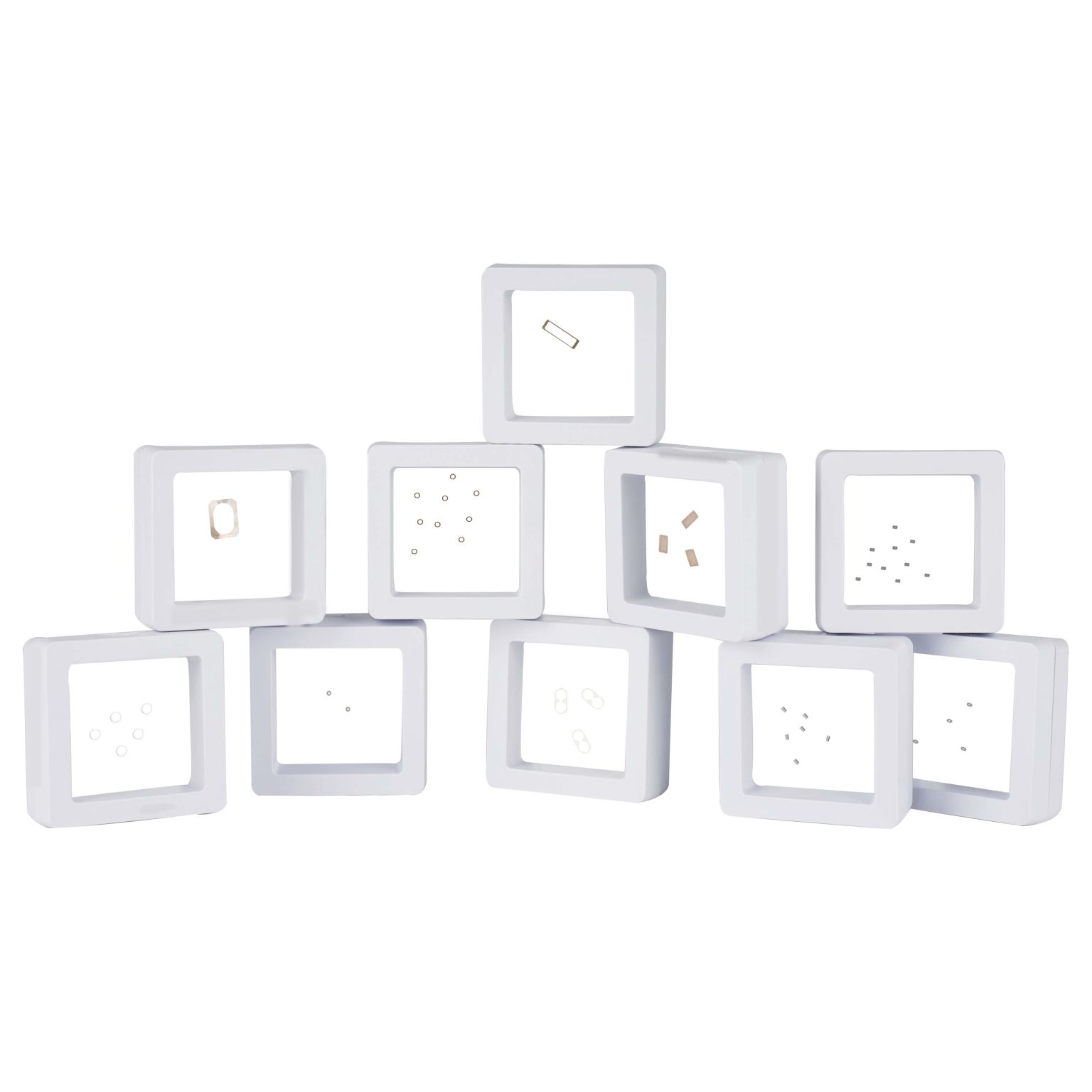

Solder preforms are supplied in standard chip-style dimensions and customized shapes for precision solder volume control. Available package options include bottle, waffle, and tape & reel. OEM support is available for alloy, size, shape, flux coating, and packaging requirements.
Precision solder volume control for repeatable assembly.

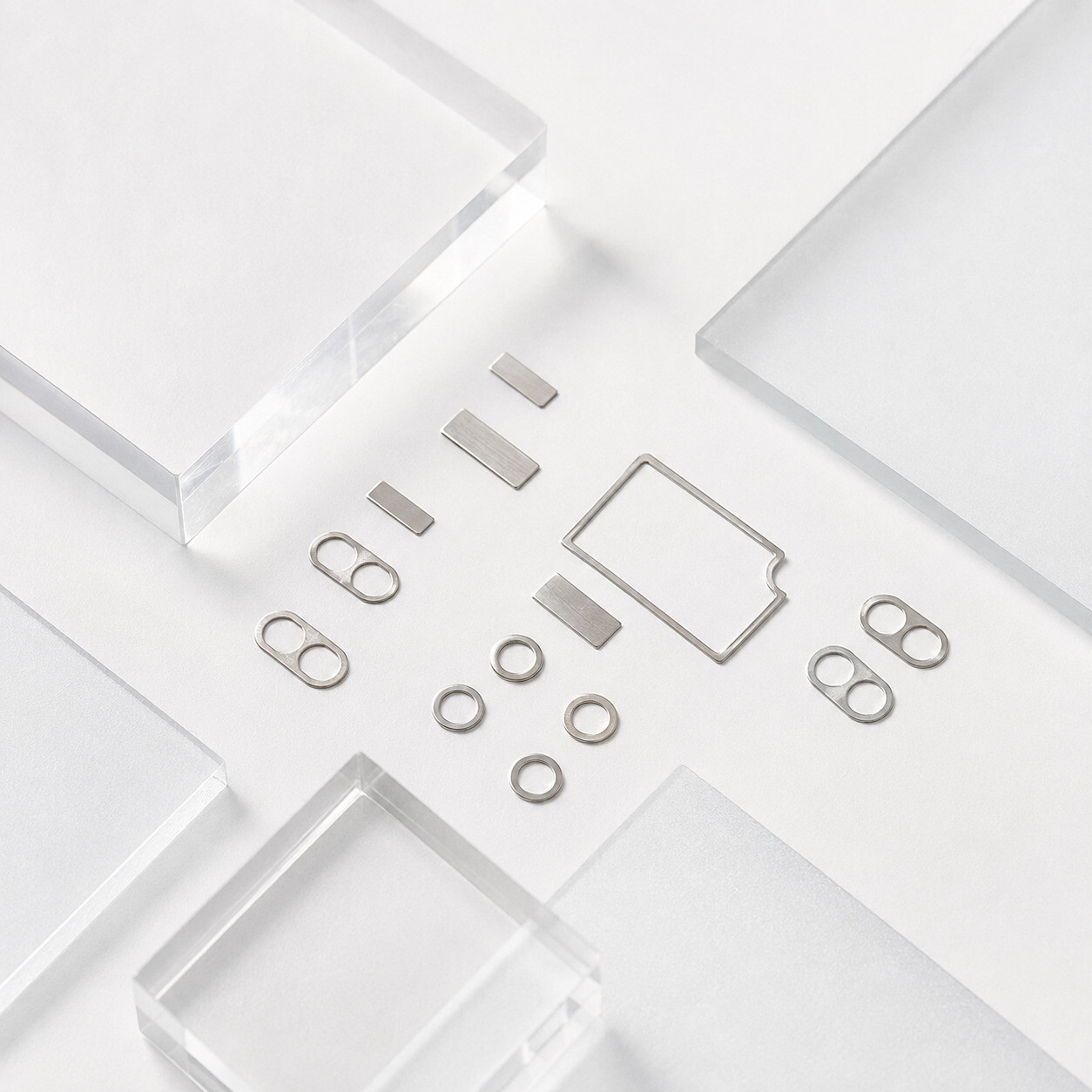

Solder preforms provide fixed solder volume and controlled geometry for precision assembly processes. Standard chip-style models are available, and customized circles, squares, and special shapes can be supplied according to OEM requirements. Packaging can be selected based on component size, production process, and required quantity per reel or carrier.
OEM Customization
Alloy, size, shape, package, and flux coating can be customized according to application needs.
Multiple Alloy Systems
Available alloy elements include Sn, Ag, Cu, Sb, Bi, Pb, Au, and In.
Flux Coating Option
Pure alloy and flux coating versions can be selected based on soldering process requirements.
Flexible Packaging
Paper or plastic package, 7-inch or 13-inch reel, with different quantities according to model.
Standard solder preform models

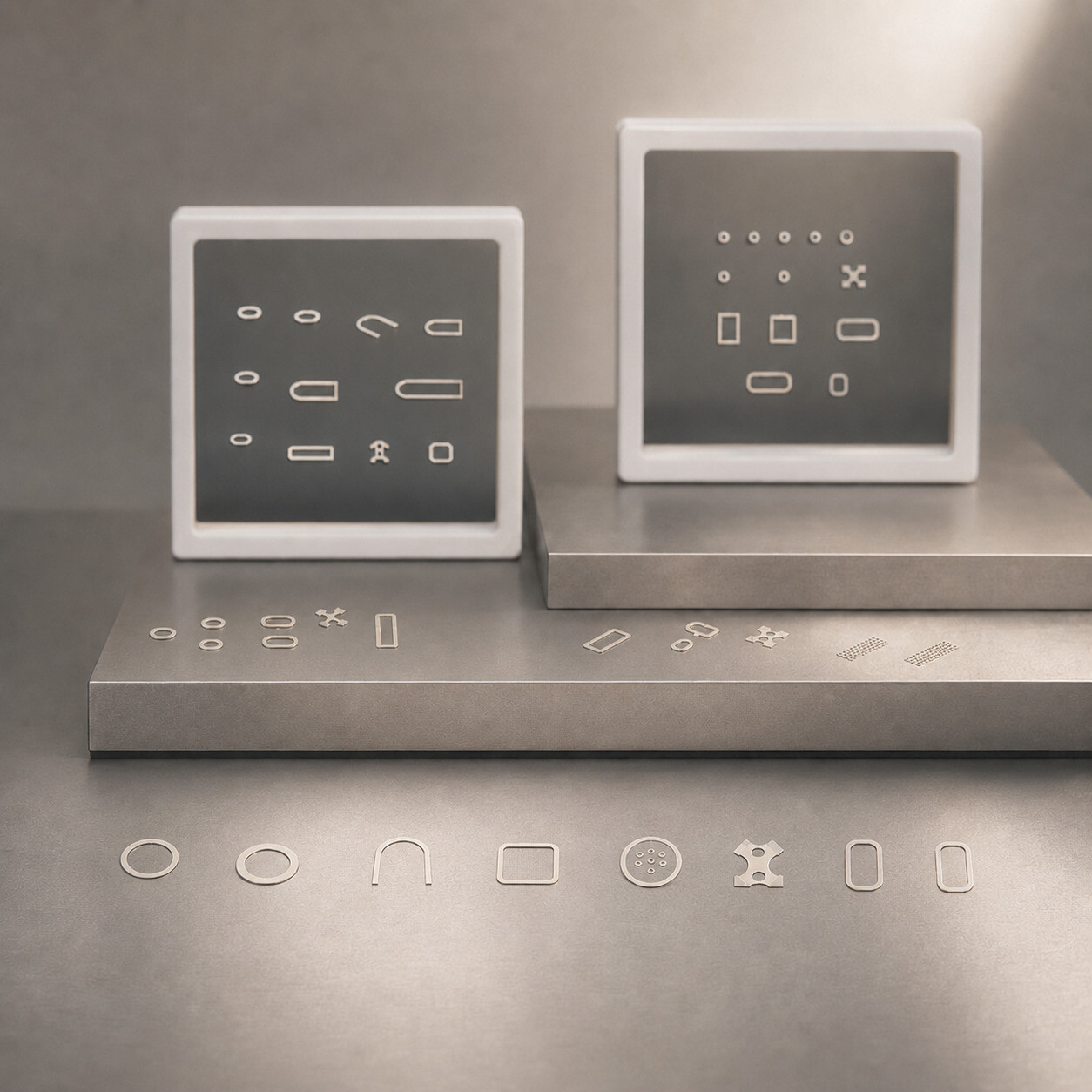

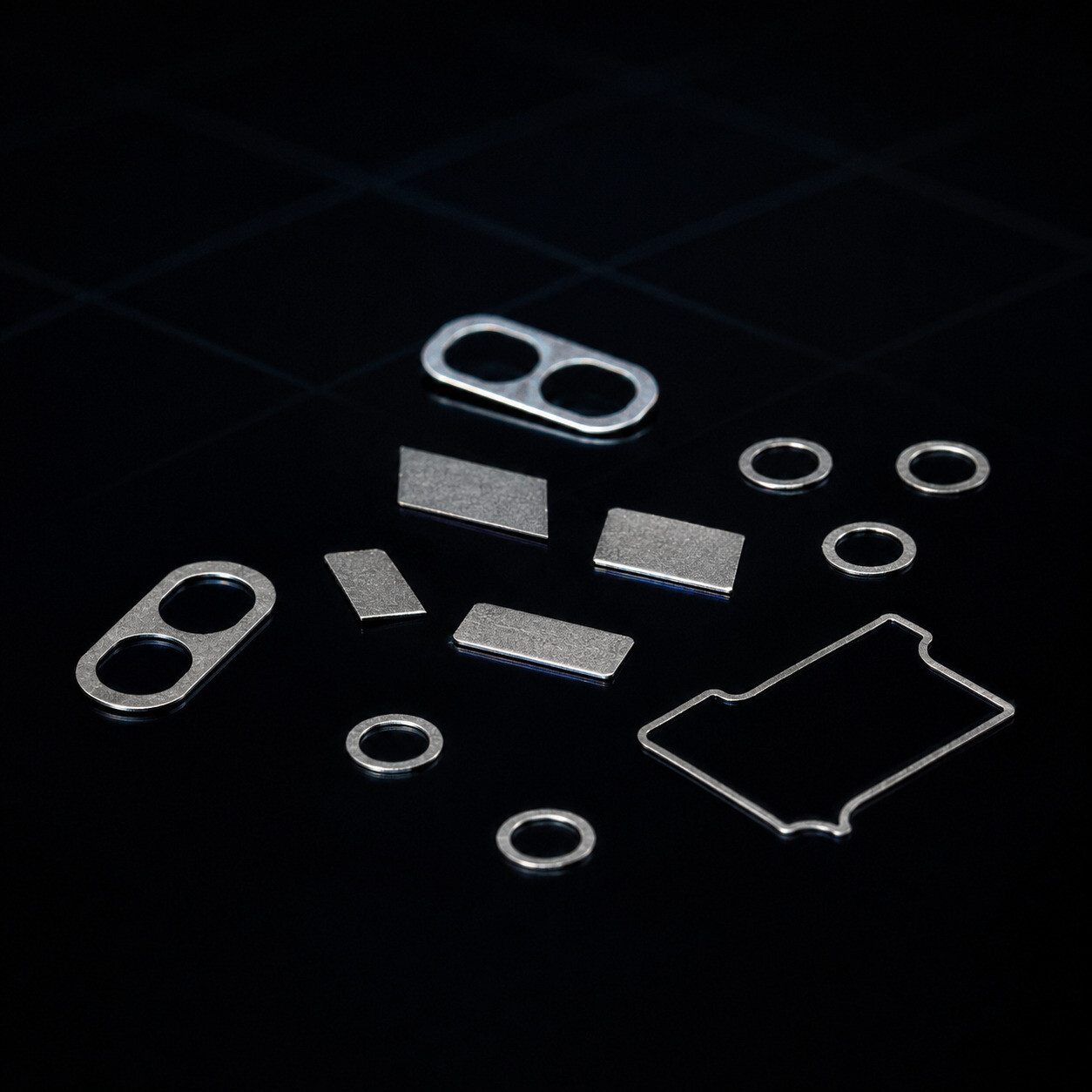

Each model is displayed as a separate product-style item. The image URL is temporarily reused and can be replaced later with solder preform, tape & reel, waffle, bottle, or package photos.
Standard dimension of solder preform
For quick size comparison, the table below summarizes standard solder preform dimensions and volume information.
| Model | L | W | H | V | ||||
|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm³ | inch³ | |
| JF0201 | 0.60 | 0.023 | 0.30 | 0.012 | 0.30 | 0.012 | 0.054 | 0.000003 |
| JF0402 | 1.00 | 0.039 | 0.50 | 0.020 | 0.50 | 0.020 | 0.250 | 0.00015 |
| JF0603 | 1.60 | 0.063 | 0.80 | 0.031 | 0.80 | 0.030 | 1.020 | 0.000061 |
| JF0805 | 2.03 | 0.079 | 1.27 | 0.050 | 0.76 | 0.028 | 1.960 | 0.000111 |
| JF1206 | 3.56 | 0.140 | 1.52 | 0.060 | 0.77 | 0.030 | 4.170 | 0.000254 |
Solder preform carrier tape package
Paper or plastic package is available. 7-inch or 13-inch packaging quantity may vary by model.
| Model | JF0201 | JF0402 | JF0603 | JF0805 | JF1206 |
|---|---|---|---|---|---|
| 7 inch scroll | 20,000 | 10,000 | 4,000 | 4,000 | 4,000 |
| 13 inch scroll | - | 25,000 | 15,000 | 15,000 | 15,000 |
| Loaded with dielectric | Paper | Plastic | Plastic | Plastic | Plastic |
For precision solder volume control and OEM assembly.
