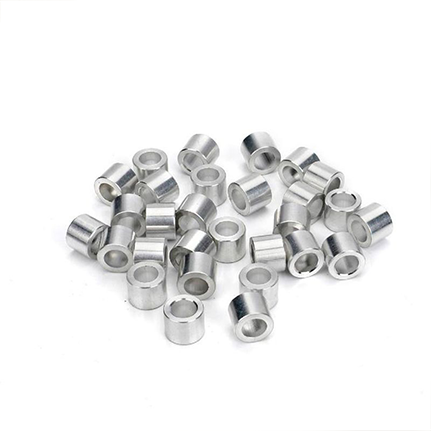

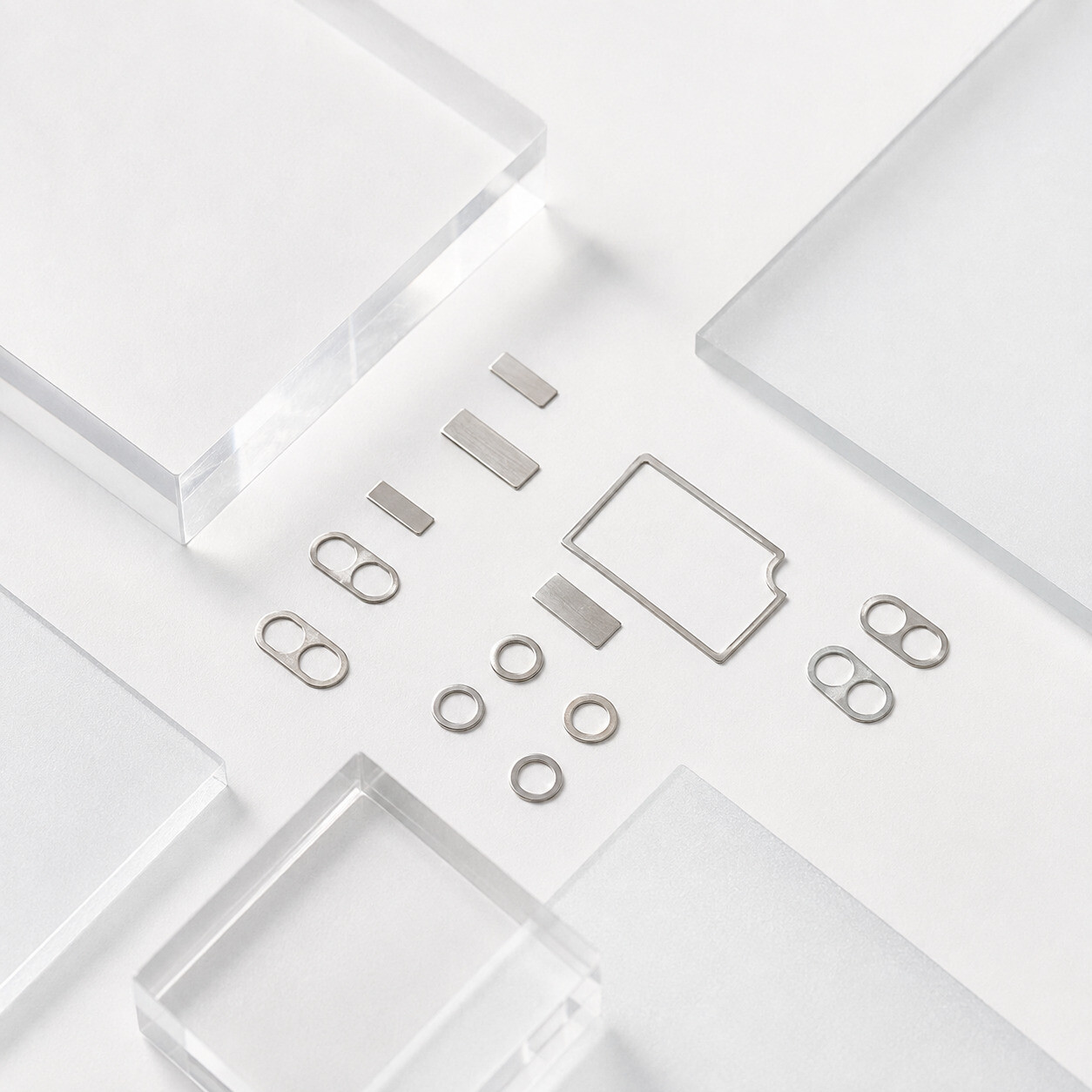

JF0402 Solder Preform

JF0402 solder preform is supplied for precision electronic assembly, solder volume control, automated placement, and customized soldering processes. Standard dimensions are available, with OEM customization supported for alloy, shape, flux coating, and packaging.

Quantity

Contact Now

JF0402 Solder Preform

A standard chip-style solder preform with defined dimensions and volume for repeatable solder delivery in precision assembly and tape-and-reel processes.

JF0402Standard model

1.00 × 0.50 × 0.50 mmStandard dimensions

0.250 mm³Fixed solder volume

Request a Quote View Specifications

JF0402 Standard Solder Preform

Standard solder preform for repeatable volume and automated placement

JF0402 provides a fixed 1.00 × 0.50 × 0.50 mm geometry and 0.250 mm³ solder volume. The model is listed with both 7-inch and 13-inch reel options, supporting different production quantities and placement requirements.

Standard Chip Geometry

1.00 × 0.50 × 0.50 mm fixed dimensions.

Controlled Solder Volume

Defined volume of 0.250 mm³.

Two Reel Size Options

Listed for both 7-inch and 13-inch reel packaging.

Plastic Carrier

The source page lists plastic carrier material for JF0402.

Pure or Flux-Coated Supply

Select pure alloy or flux coating according to soldering requirements.

OEM Manufacturing Support

Alloy, geometry and packaging can be discussed for customized orders.

Product Specifications

Standard dimensions, volume and carrier tape information for engineering review and purchasing reference.

Recommended Use

Recommended for precision electronic assembly, automated placement and controlled solder-volume processes where the JF0402 geometry fits the target joint design.

Product Name

JF0402 Solder Preform

Model

JF0402

Standard Dimensions

1.00 × 0.50 × 0.50 mm

Solder Volume

0.250 mm³

Product Form

Chip-style solder preform

7-Inch Reel Quantity

10,000 pieces

13-Inch Reel Quantity

25,000 pieces

Carrier Material

Plastic

Flux Option

Pure alloy or flux coating

OEM Support

Alloy, size, shape and package

Typical Applications

Final suitability should be confirmed against joint geometry, alloy requirements, placement equipment and the selected soldering process.

Application 01Precision Electronic Assembly

Application 02Automated Placement

Application 03Solder Volume Control

Application 04OEM Soldering Projects

Need JF0402 solder preforms in reel packaging?

Contact Jufeng Solder to confirm alloy, flux option, 7-inch or 13-inch reel quantity and OEM specifications.
