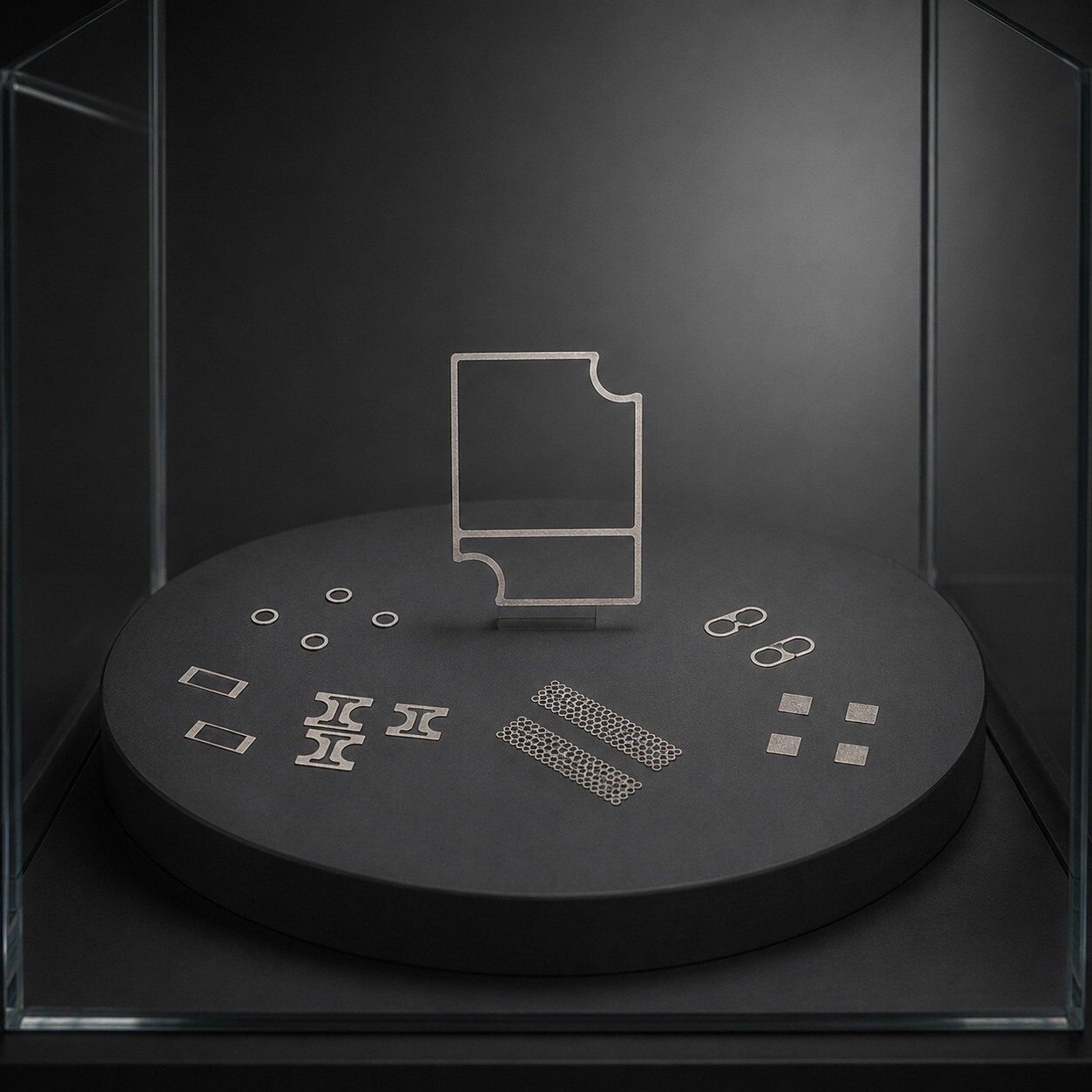

JF0603 Solder Preform

JF0603 solder preform is supplied for precision electronic assembly, solder volume control, automated placement, and customized soldering processes. Standard dimensions are available, with OEM customization supported for alloy, shape, flux coating, and packaging.

Quantity

Contact Now

JF0603 Solder Preform

A mid-size standard solder preform for fixed solder-volume delivery, tape-and-reel placement and customized OEM assembly processes.

JF0603Standard model

1.60 × 0.80 × 0.80 mmStandard dimensions

1.020 mm³Fixed solder volume

Request a Quote View Specifications

JF0603 Standard Solder Preform

Mid-size solder preform for controlled solder volume and placement

JF0603 uses a 1.60 × 0.80 × 0.80 mm standard geometry with a listed solder volume of 1.020 mm³. The model is available in both 7-inch and 13-inch reel configurations according to the source page.

Mid-Size Standard Model

1.60 × 0.80 × 0.80 mm chip-style dimensions.

Fixed 1.020 mm³ Volume

Provides a defined solder amount for repeatable assembly.

7-Inch Reel Packaging

The listed 7-inch reel quantity is 4,000 pieces.

13-Inch Reel Packaging

The listed 13-inch reel quantity is 15,000 pieces.

Plastic Carrier Format

The source page identifies plastic carrier material.

Custom Alloy and Flux Options

Alloy and flux coating can be selected according to OEM requirements.

Product Specifications

Standard dimensions, volume and carrier tape information for engineering review and purchasing reference.

Recommended Use

Recommended for precision solder-volume control and automated assembly where the JF0603 dimensions and reel quantities match production requirements.

Product Name

JF0603 Solder Preform

Model

JF0603

Standard Dimensions

1.60 × 0.80 × 0.80 mm

Solder Volume

1.020 mm³

Product Form

Chip-style solder preform

7-Inch Reel Quantity

4,000 pieces

13-Inch Reel Quantity

15,000 pieces

Carrier Material

Plastic

Flux Option

Pure alloy or flux coating

OEM Support

Alloy, size, shape and package

Typical Applications

Final suitability should be confirmed against joint geometry, alloy requirements, placement equipment and the selected soldering process.

Application 01Precision Assembly

Application 02Tape & Reel Automation

Application 03Fixed Solder Volume

Application 04OEM Component Joining

Need JF0603 solder preforms for automated placement?

Contact Jufeng Solder to confirm alloy, flux coating, reel packaging and the required production quantity.
