    Why Can’t I Solder Tiny SMD Components? 0.1mm Ultra-Fine Solder Wire Explained

    2026-07-22
    Micro Soldering Guide

    Why Can’t I Solder Tiny SMD Components? 0.1mm Ultra-Fine Solder Wire Explained

    If a 0201 component, miniature sensor lead or tiny PCB pad keeps flooding with solder, the problem may not be your hand, your iron or your temperature setting. The solder wire itself may simply be too thick for the joint.

    Published: July 22, 2026  |  Category: Soldering Materials  |  Reading time: approximately 7 minutes

    The Familiar Problem: The Pad Is Small, but the Solder Arrives Too Fast

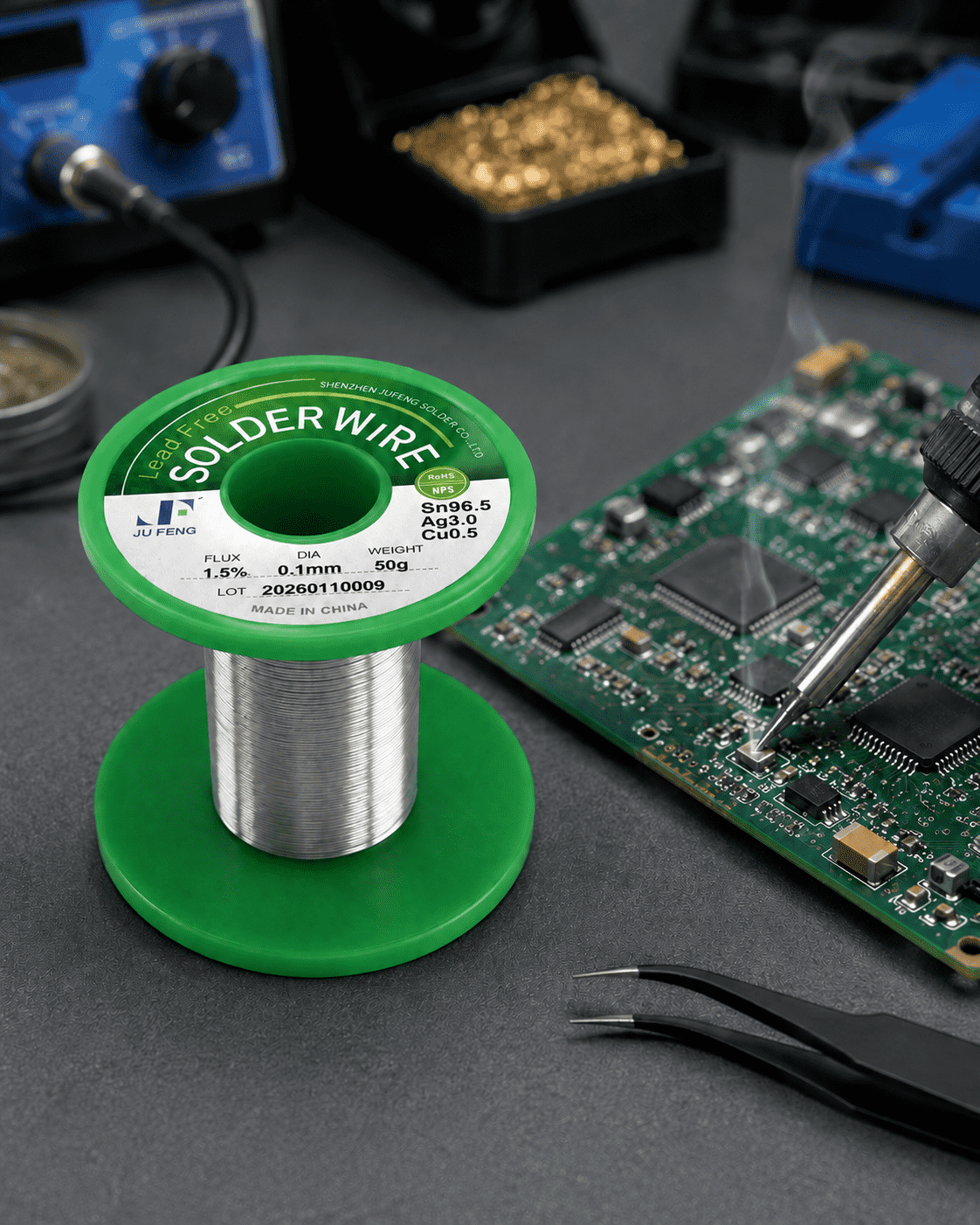

    You position the component under a microscope. The tip touches the pad for only a moment. You feed what looks like the smallest possible length of solder wire—and suddenly the pad is covered, two terminals are bridged, or a rounded solder blob hides the joint.

    This is common when hand-soldering 0201 components, very small pads, fine-pitch connectors, miniature leads and precision PCB repairs. Operators often respond by choosing a sharper tip or reducing the temperature. Those changes may help in some cases, but they do not solve a basic material-delivery problem: conventional solder wire can contain far more alloy than a miniature joint needs.

    The real question is not only “Can the tip reach the pad?” It is also “Can the wire deliver a small enough amount of solder?”

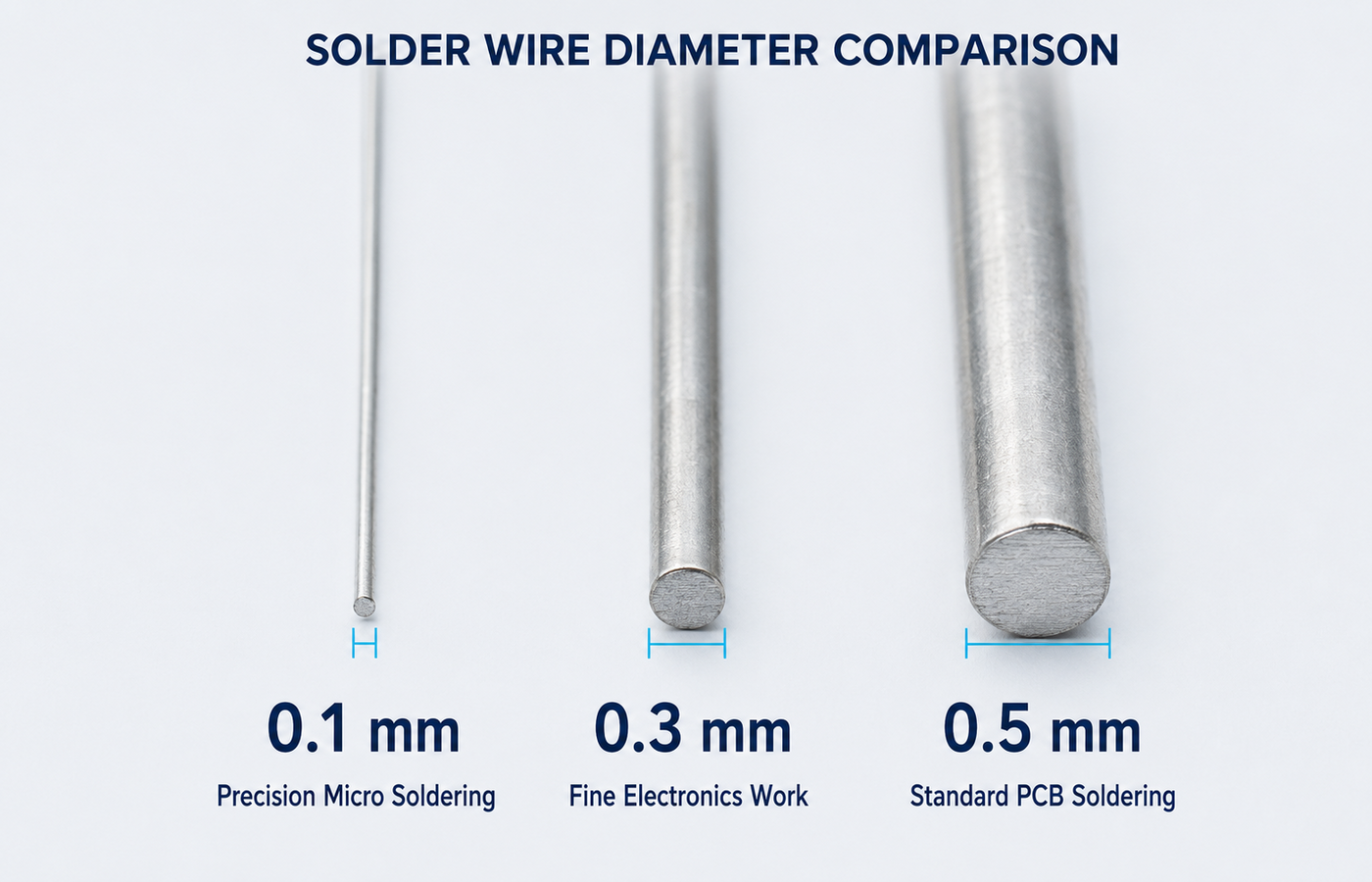

    Why Wire Diameter Changes Solder-Volume Control

    The amount of metal in a length of round solder wire is proportional to its cross-sectional area. That area increases with the square of the diameter. In practical terms, a modest-looking change in diameter produces a much larger change in the amount of solder delivered.

    Wire diameter Cross-sectional area Solder volume for the same feed length Practical implication
    0.10mm 0.00785mm² 1× reference Fine control for miniature joints
    0.30mm 0.07069mm² 9× the 0.10mm volume General fine electronics work
    0.50mm 0.19635mm² 25× the 0.10mm volume Can overwhelm very small pads quickly
    0.80mm 0.50265mm² 64× the 0.10mm volume Better suited to larger joints

    Calculated from the area of a circle. The comparison assumes equal feed length and does not adjust for differences in alloy density or flux-core geometry.

    This is why 0.1mm ultra-fine solder wire feels dramatically more controllable than 0.3mm or 0.5mm wire. The operator can feed a visible length of wire while adding only a fraction of the metal. That larger physical movement is easier to control consistently than trying to shave an almost invisible amount from a thicker wire.

    The Material Solution

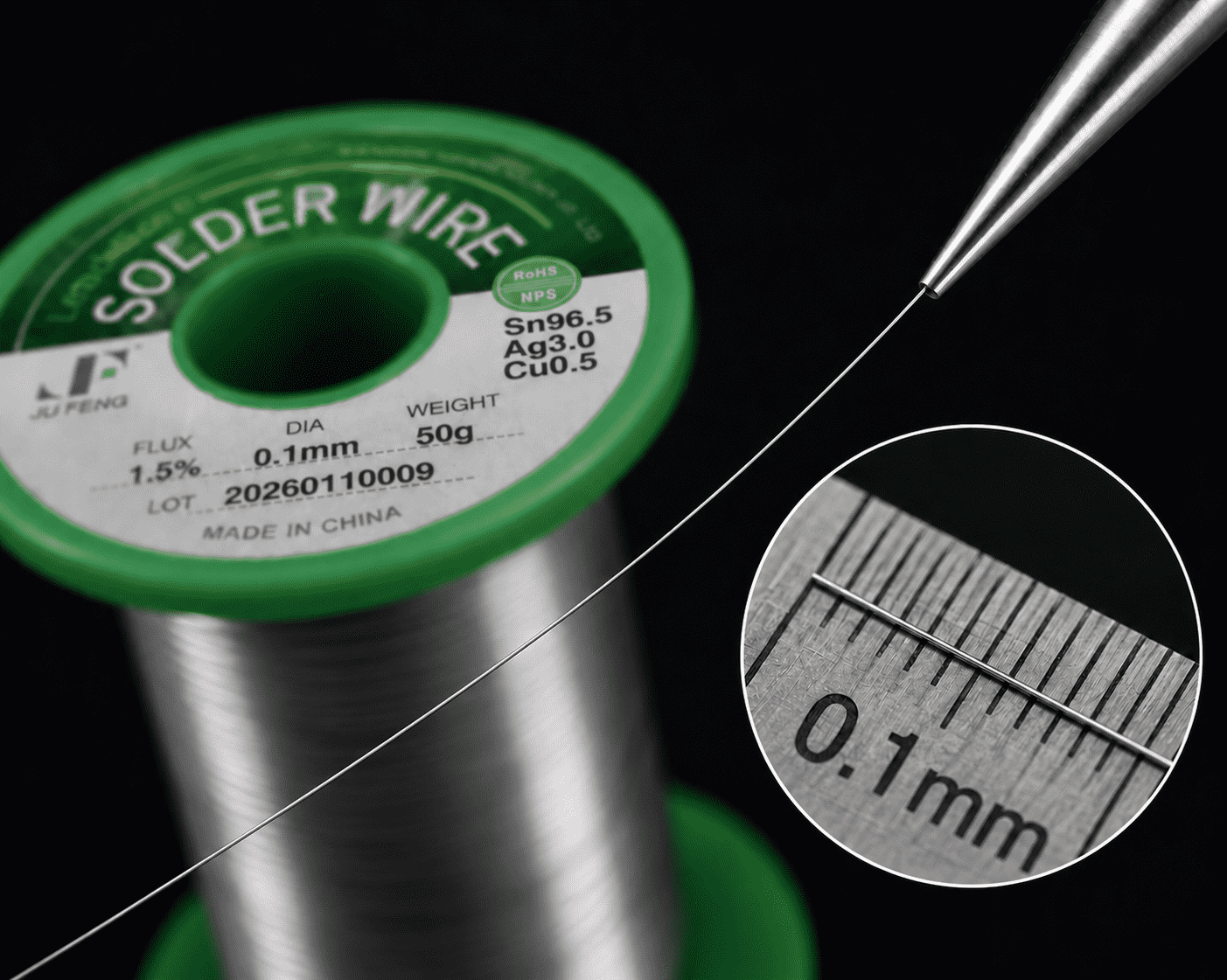

    Jufeng 0.1mm SAC305 Ultra-Fine Solder Wire

    Jufeng’s 0.1mm ultra-fine lead-free solder wire is available in Sn96.5Ag3.0Cu0.5 (SAC305), a widely used tin-silver-copper alloy for electronics assembly. It is designed for applications where the amount of solder must be controlled far more precisely than with standard-diameter wire.

    Nominal wire diameter 0.10mm
    Reference alloy Sn96.5Ag3.0Cu0.5 / SAC305
    Melting point Approximately 217°C
    Process focus Manual micro-soldering, precision repair, prototyping and selected automated feeding evaluations
    Available customization Alloy, wire configuration, flux specification, spool weight and packing subject to technical confirmation
    Lead-free wire series packing 10g tube and 100g / 250g / 500g / 1000g / 2000g roll options; availability depends on the selected specification

    Product specifications should be confirmed for the required alloy, diameter, flux system and package. Actual soldering performance depends on the substrate, tip, temperature, dwell time, surface condition and operator or equipment settings.

    Where 0.1mm Solder Wire Is Most Useful

    01

    Miniature SMD Rework

    Controlled addition of solder during microscope-assisted touch-up of very small passive components and compact pads.

    02

    Fine-Pitch PCB Repair

    Local repair where excess solder could bridge adjacent terminals, cover inspection points or require repeated wick cleanup.

    03

    Miniature Leads and Sensors

    Small terminals in sensors, compact connectors, camera modules, wearables, medical electronics and other space-limited assemblies.

    04

    Precision Prototyping

    Engineering builds and laboratory work where each joint is created individually and solder quantity must be adjusted in very small increments.

    Important: 0.1mm wire improves material metering, but it does not make every miniature package suitable for hand soldering. Hidden terminations, area-array packages and some 01005 processes may still require solder paste, hot air, reflow equipment or another controlled deposition method.

    How to Get Better Results With Ultra-Fine Solder Wire

    1. Match the tip to the joint. Use a tip that can access the pad while still transferring heat efficiently. The narrowest tip is not automatically the best thermal choice.
    2. Start with clean, solderable surfaces. Oxidation or contamination increases dwell time and makes a precise joint harder to form.
    3. Use the correct flux system. Flux selection should match the substrate, cleaning requirement and reliability standard. Extra external flux may help selected rework processes, but residues must be handled correctly.
    4. Control time as well as temperature. SAC305 melts at approximately 217°C, but the correct station setpoint depends on tip geometry, calibration, thermal mass and dwell time. Avoid prolonged heating of a small component.
    5. Feed a measured length. Ultra-fine wire makes solder quantity easier to meter. For repeat work, standardize the approximate feed length, contact point and heating time.
    6. Inspect the finished joint. Use suitable magnification to check wetting, fillet shape, bridges, disturbed joints and heat damage before accepting the repair.

    When Thinner Wire Will Not Solve the Problem

    Wire diameter is only one part of the soldering process. If a joint still refuses to wet, inspect the surface finish, component termination, oxidation, flux activity, tip condition and heat delivery. If the solder wets but repeatedly bridges adjacent pads, review pad design, component alignment, applied solder volume and the repair method.

    Ultra-fine wire is most valuable when the process is fundamentally solderable but the operator cannot meter a sufficiently small amount of alloy. It gives the process a finer “volume control”—it does not compensate for contaminated surfaces, unsuitable metallurgy or inadequate heating.

    Frequently Asked Questions

    Why does solder bridge tiny SMD pads even with a fine tip?

    A fine tip controls access, but it does not control the amount of alloy delivered by the wire. A conventional wire can release too much solder with a very short feed, especially on miniature pads.

    Can 0.1mm solder wire be used for 0201 or 01005 components?

    It can provide more precise solder-volume control for small pads and microscope-assisted rework. Actual suitability depends on pad geometry, component termination, alignment, tools, operator skill and the complete process. Some 01005 work is better handled with solder paste and reflow or hot-air methods.

    Does 0.1mm wire melt at a lower temperature than thicker wire?

    No. The alloy composition determines the melting temperature. SAC305 melts at approximately 217°C whether it is supplied as 0.1mm wire or a larger diameter.

    What is the advantage of 0.1mm wire over 0.3mm wire?

    For the same feed length, a 0.1mm wire provides about one-ninth of the solder volume of a 0.3mm wire. This makes small additions easier to control and can reduce excess solder and bridge correction.

    Is ultra-fine wire a replacement for solder paste?

    Not for every application. It is especially useful for manual micro-soldering, touch-up, prototyping and selected precision-feed processes. Reflow assembly and packages with inaccessible joints may still require paste, preforms or another deposition method.

    Precision Soldering Support

    Is Your Current Solder Wire Too Thick for the Joint?

    Send us your target component, pad dimensions, alloy requirement, flux preference, process method and expected packaging. Jufeng can help evaluate a suitable ultra-fine solder wire specification for your precision soldering application.

    Request a Sample or Quote

    Related Solder Wire Resources

    View Jufeng lead-free solder wire alloys and diameter options
    Browse the complete solder wire category

    Technical information is provided for general reference. Final material selection and process settings should be verified using the customer’s actual components, PCB finish, equipment, reliability requirements and production conditions.
