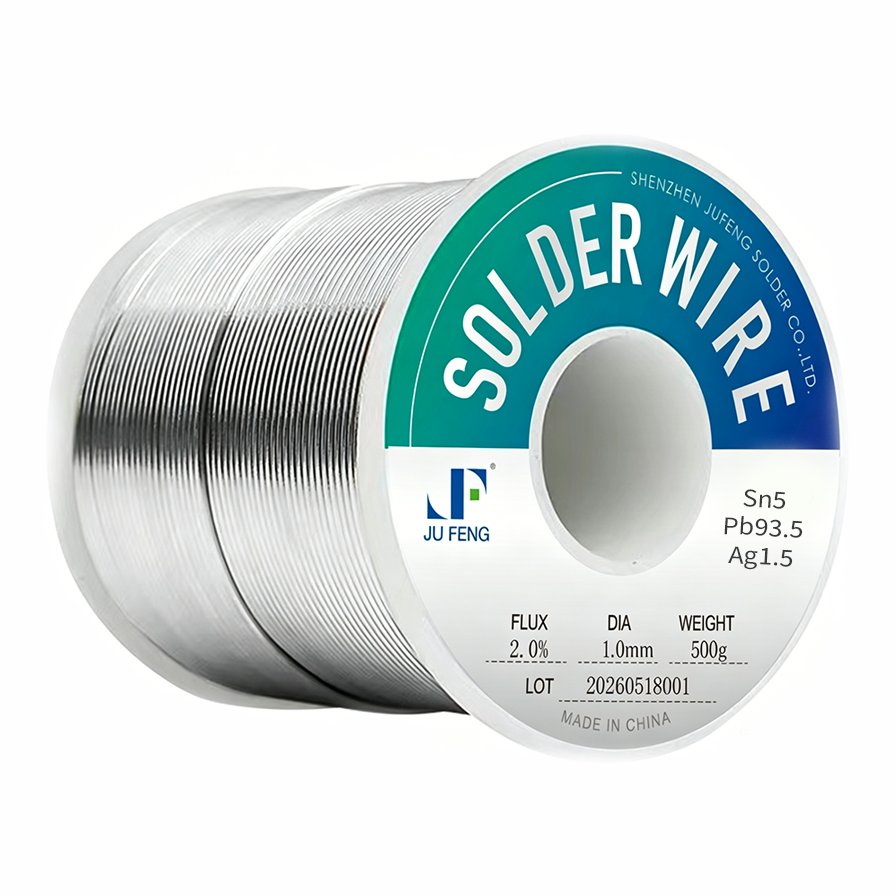

Sn5Pb93.5Ag1.5 Tin Lead Solder Wire
Sn5Pb93.5Ag1.5
Tin Lead Solder Wire
Sn5Pb93.5Ag1.5 tin lead silver solder wire is a high-lead silver-containing solder alloy designed for high-temperature and specialized soldering applications. With a melting range of approximately 296–301°C and available diameter from 0.60mm, it is suitable for selected electrical, industrial, and electronic assemblies requiring high-lead solder performance.
A high-lead silver solder wire for elevated-temperature applications.
Sn5Pb93.5Ag1.5 solder wire combines high lead content with silver addition, providing a higher melting range and specialized soldering behavior. It is suitable for applications where conventional low-temperature tin-lead solder wire is not sufficient.
High Melting Range
296–301°C melting range for elevated-temperature soldering applications.
Silver-Containing Formula
Silver addition supports improved joint behavior in suitable applications.
High-Lead Alloy
Designed for specialized soldering requirements.
Stable Supply Options
Available in tube, spool, and carton packaging formats.
Sn5Pb93.5Ag1.5 solder wire specifications.
Core product parameters for quick evaluation and RFQ communication.
| Item | Specification | Description |
|---|---|---|
| Product Name | Sn5Pb93.5Ag1.5 Tin Lead Silver Solder Wire | High-lead silver-containing solder wire |
| Alloy Composition | Sn5 / Pb93.5 / Ag1.5 | Tin-lead-silver solder alloy |
| Melting Range | 296–301°C | Typical melting range for Sn5Pb93.5Ag1.5 |
| Minimum Diameter | ≥0.60mm | Suitable for specialized high-temperature soldering |
| Wire Type | Flux Cored / Solid Core Optional | Can be selected according to process requirements |
| Flux Type | Rosin Core / No-Clean Optional | Custom flux formulation available |
| Surface | Bright and smooth | Supports stable feeding and soldering |
| Packaging | Tube / Spool / Carton | 10g per tube; 100g–2000g per roll; carton packaging available |
Designed for specialized high-lead soldering.
Sn5Pb93.5Ag1.5 solder wire is suitable for applications requiring elevated melting range and high-lead silver-containing solder alloy.
High-Temperature Applications
Used where conventional tin-lead solder is not suitable.
Industrial Electronics
Suitable for selected industrial electronic assemblies.
Electrical Components
Applicable to compatible terminals, connectors, and electrical parts.
Specialized Assembly
Used for soldering tasks requiring high-lead alloy performance.
Flexible packaging for sampling and production.
Packaging can be selected according to wire diameter, order quantity, and shipping requirements.
Tube Packaging
10g per tube, suitable for samples, maintenance, and small-quantity use.
Spool Packaging
100g / 200g / 250g / 500g / 1000g / 2000g per roll available.
Carton Packaging
10 rolls per carton box; box size: 38 × 16.5 × 25cm; three boxes per carton.
